High performance standard digital servo, low operating noise, good linearity, used for RC robots, cars, trucks, boats
Working voltage: DC 5-7.4V, stall torque: (5.0V) 29kg/cm, stall torque: (6.0V) 32kg/cm, stall torque: (7.4V) 35kg/cm
Motor: Coreless motor, Angle: 270 degrees, Bearing: Double bearing
Metal gear and CNC aluminum alloy middle shell.
Contents: 2 servos + 2 long U-shaped brackets + 2 short U-shaped brackets + 2 arm plates + 2 sets of screws.

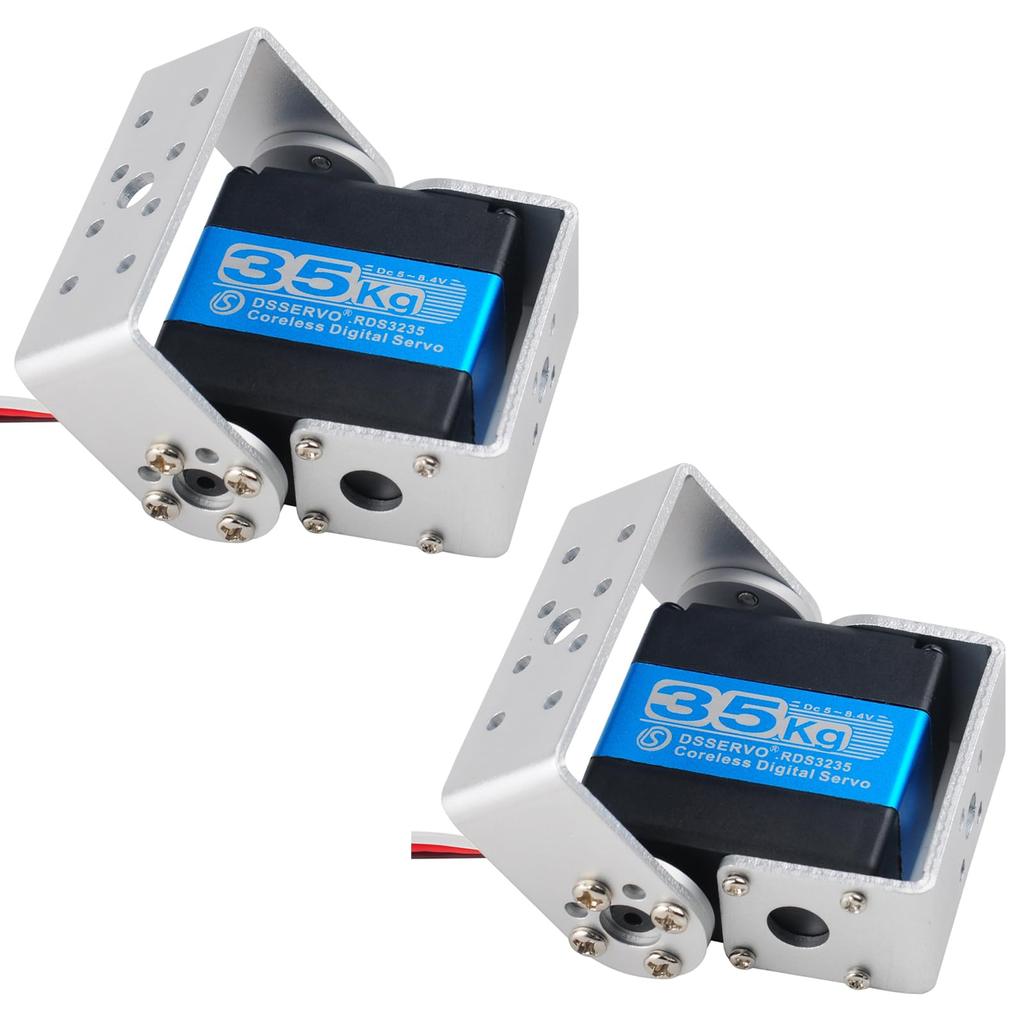

DIYmall 2 Sets 35KG RDS3235 High Torque Digital Servo Metal Gear Coreless Motor Servo 270 Degree with Bracket Arm Plate for RC Robot Car DIY Model
explanation:
Model: RDS3235.
Working voltage: DC 5-7.4V.
Operating speed: (5V) 0.13 seconds/60°
Operating speed: (6.0V) 0.12 seconds/60°
Operating speed: (7.4V) 0.11 seconds/60°
Stall torque: (5.0V) 29kg/cm
Stall torque: (6.0V)32kg/cm
Stall torque: (7.4V)35kg/cm
Storage temperature range: -30~80℃
Operating temperature range: -15~70 degrees Celsius.
Dimensions: 40X20X40mm
Gear ratio: 373
Bearing: double bearing
Motor: Coreless motor
Angle: 270 degrees
Maximum PW: 500-2500μs
Operating frequency: 50~330Hz
Package contents:
2 sets RDS3235 servo 270°
