Dual sensor ports compatible with sensored and sensorless ESCs
Alloy and hardened screws, no magnetic resistance
Strong sintered magnet/designed for maximum energy conversion
Double color V-routing design, CNC machined billet 7075 aluminum alloy
High purity copper winding maximizes conductivity

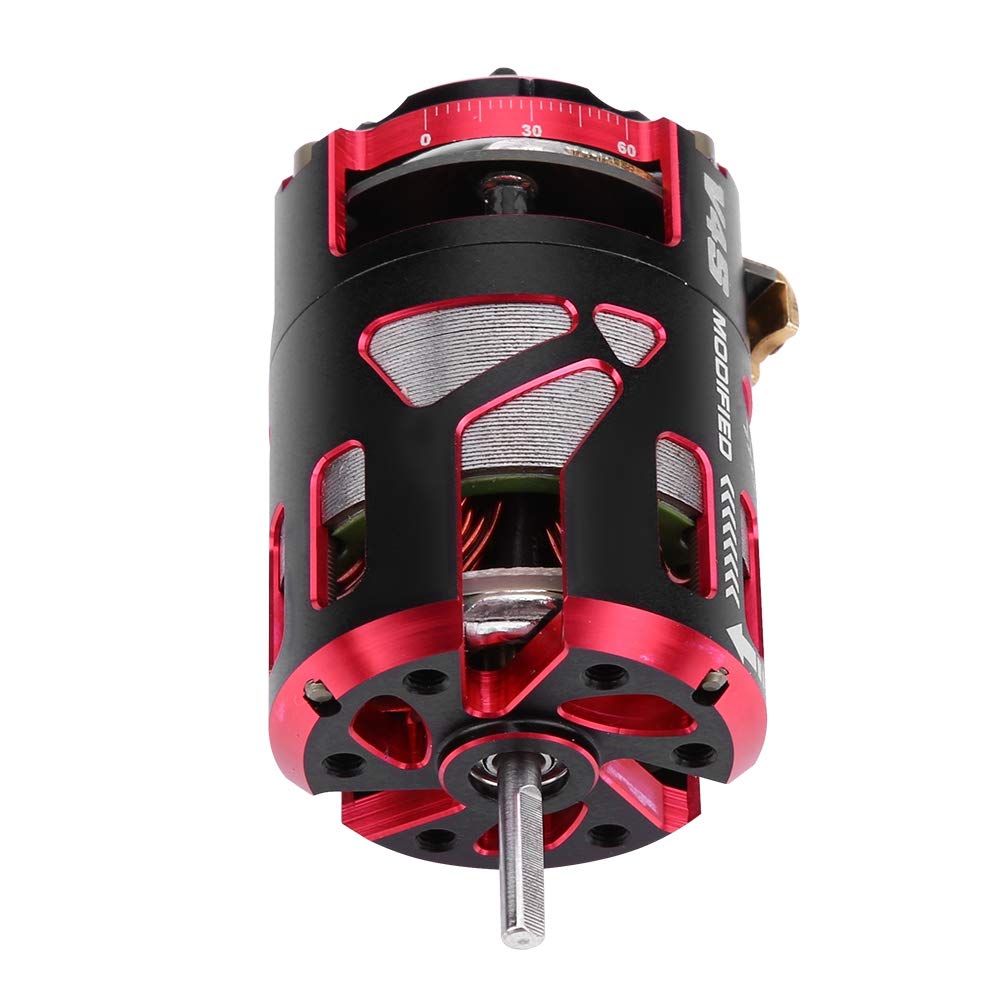

V4S 540 8.5T sensored brushless racing motor is designed for modified 1:10 RC racing cars. 8.5T sensored brushless motor has more powerful power handling capability to provide running power for RC vehicles and is the best choice.
function:
1. Double color V-routing design, CNC machined billet 7075 aluminum alloy.
2. Alloy and hardened screws, no magnetic resistance.
3. High purity copper windings maximize electrical conductivity.
4. Strong sintered magnet/designed for maximum energy conversion.
5. Dual sensor ports compatible with sensored and sensorless ESCs.
6. High power solder pads, removable and replaceable rotor.
7. IFMAR, ROAR BRCAEFRA compliant.
specification:
Condition: 100% new
Item type: RC accessories
Material: metal + magnet
Color: red + black
Weight: approx. 212g
Applicable products: for 1/10 RC racing car
Design: with sensor
Watt: 490W
LiPo: 1-2S
Max Amps: 108A
Rotor pole: 2
IO (7.4V): 6.5A
Resistance (Ω): 0.0042
KV (RPM/Volt): 7800
Max RPM: 57720
Motor diameter: about 35mm
Motor length: about 55mm
Shaft diameter: about 3mm
Extension shaft length: approx. 12.5mm
Package list:
1*Motor
1*Manual
1 * Motor connection cable
Note:
Please allow slight errors due to manual measurement and make sure you do not mind before ordering.
