Features:
1. Measure the camber and caster on the wheel hub or brake disc.
2. You can perform simple level adjustments from -5 degrees to 5 degrees.
3. The magnetometer is installed on the wheel hub or disc brake and adjusted to maintain correct wheel positioning and uniform tire wear.
4. Save time on the device, easy to read, simple to operate.
5. Suitable for precise control of casters and camber.
6.Simple horizontal adjustments can be made from -5 to 5 degrees.
7.After disassembly and reassembly, the support rod can be restored to the original camber position.
Specification:

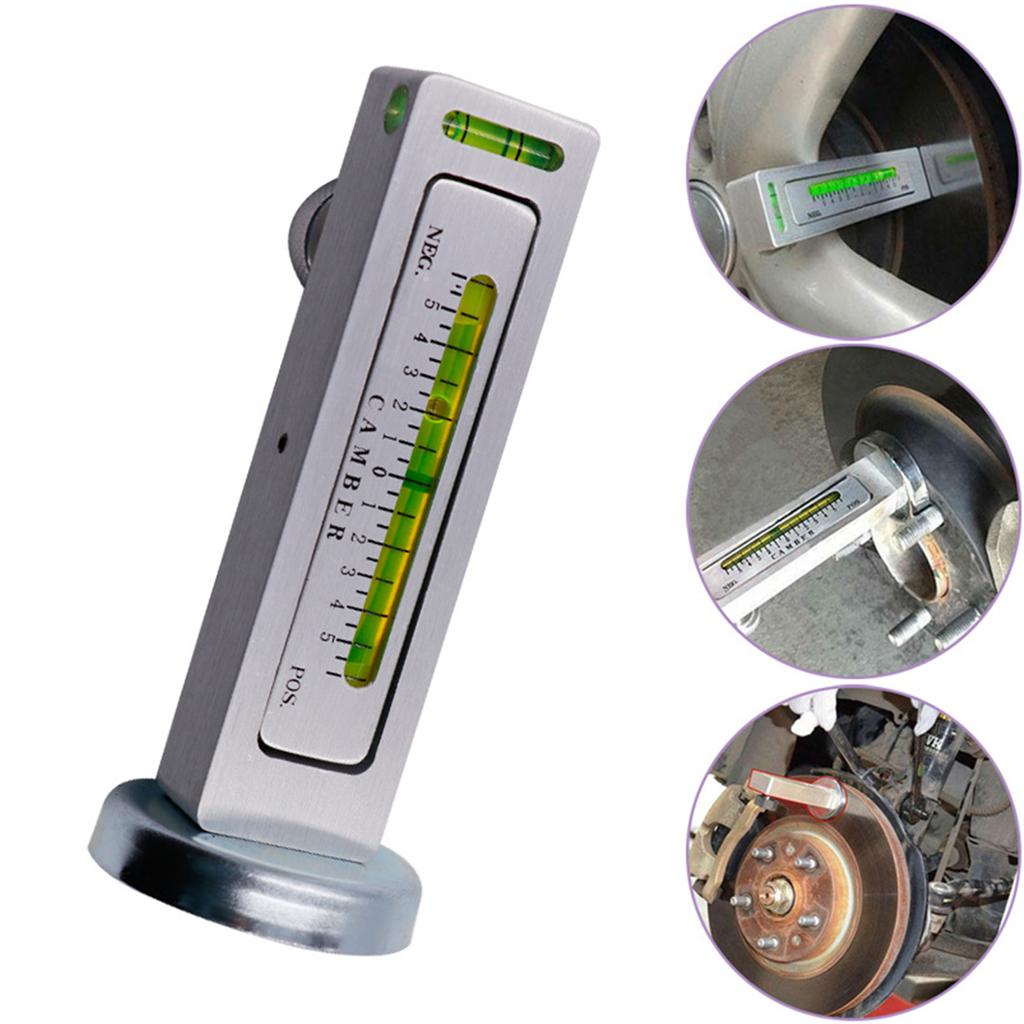

Name: Magnetic Level
Features: Double-bubble design, high-precision
Size: 125*30*20mm
Color: Silver/Black
Instructions for use:
1. Remove the four-wheel positioning sensor (clamp) and tire;
2. Carefully suck the magnetic level on the side of the brake wheel;
3. Adjust the level to zero;
4. Install the required special parts for positioning;
5. Use special tools to adjust the positioning parts to the required measuring angle with the aid of the degree indication of magnetic level.
6. If a little deviation is found in the retest with the locator, it only needs to be fine-tuned at the bottom of the car. (generally, a little deviation will not cause positioning failure)
Package Included:
1*Car positioning level instrument (two colors optional)
Notes:
1. Since the size above is measured by hand, the size of the actual item could be slightly different from the size above.
2. Due to the lighting effects, monitor settings, etc. There could be some slight difference in the color tone of the pictures and the actual item.
