Features:
brand new high quality
Aluminum alloy material, corrosion resistance, long service life.
SK8/10/12/13/16/20/25/30 bearing aluminum CNC linear guide shaft guide rail support bracket
Low frictional resistance allows precise rotation in smooth motion.
Economical and easy to maintain and replace.
SK hole linear guide shaft guide support for XYZ table CNC.
Application: Widely used in home appliances, industry, speed regulating motors, construction machinery, auto parts, pumps, machinery, etc.

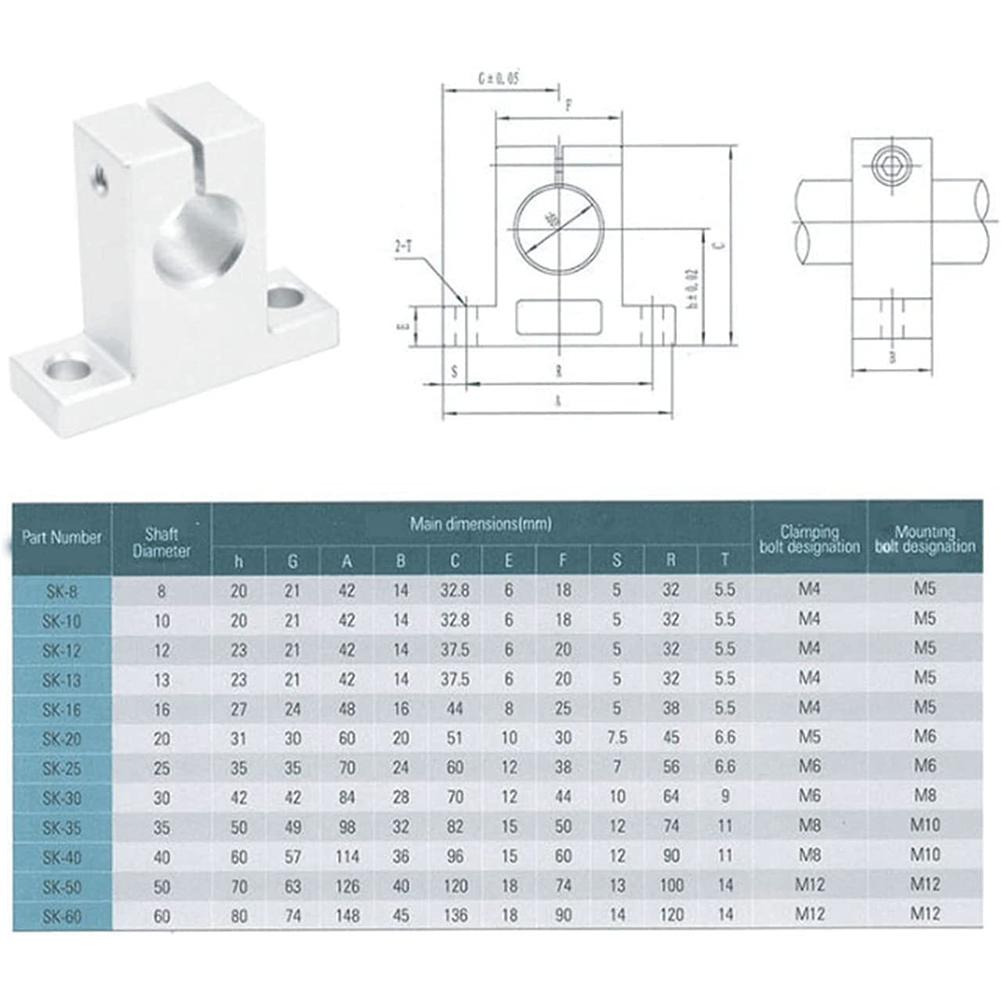

Product parameters:
Name: Linear guide shaft support
Material: aluminum alloy
Color: silver
Model: SK6, SK8, SK10, SK12, SK13, SK16, SK20, SK25, SK30, SK35, SK40, SK50, SK60 (optional)
Shaft inner diameter: 6mm/8mm/10mm/12mm/13mm/16mm/20mm/25mm/30mm/35mm/40mm/50mm/60mm
Package Included:
1 * Linear guide shaft guide support
Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
